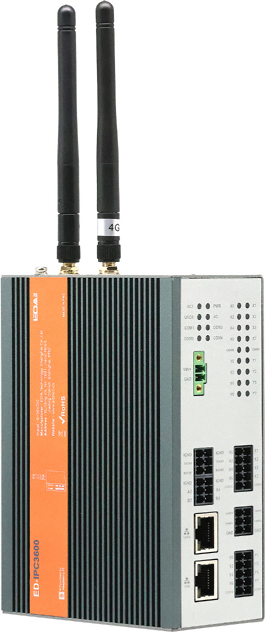

Unleashing Versatility: EDATEC ED-IPC3600 Series Industrial Computers Powered by Raspberry Pi

The ED-IPC3600 series consists of industrial computers built on the Raspberry Pi CM5 platform. Various configurations of RAM and built-in storage are available to meet different application scenarios and user requirements:

— RAM: 2 GB, 4 GB, 8 GB
— eMMC Storage: 16 GB, 32 GB, 64 GB

The ED-IPC3600 lineup features three models: ED-IPC3610, ED-IPC3620, and ED-IPC3630, each equipped with standard interfaces including HDMI, USB, Ethernet, RS232, RS485, digital inputs (DI), digital outputs (DO), and CAN. The devices can connect to networks through Wi-Fi, Ethernet, and 4G.

— Processor: Broadcom BCM2712, 4-core Arm Cortex-A76 (ARM v8) clocked at 2.4 GHz
— Memory: up to 8 GB LPDDR4 RAM, up to 64 GB eMMC, with support for microSD cards and expansion via M.2 NVMe SSD
— Network Interfaces: 2 network ports (1× Gigabit Ethernet + 1× 100M Ethernet)
— Serial Interfaces: 4 isolated RS232/RS485 ports with electrostatic discharge and over-voltage protection
— CAN: 2 isolated interfaces with LED indicators, supporting the CAN 2.0B standard
— Inputs/Outputs: 8 isolated DI (with LED indicators, supporting AC input) and 8 isolated DO (with overload protection)
— Wireless Communication: Wi-Fi 2.4/5 GHz, Bluetooth, 4G LTE

Optional: CODESYS Control for Raspberry Pi MC SL

Power Supply: Wide input voltage range of DC 9V~36V, featuring reverse polarity, over-voltage, and over-current protection

Additional Features: Backup power from a supercapacitor, RTC, Watch Dog timer, EEPROM, and encryption chip

Operating Temperature: Ranges from -25℃ to 60℃

Housing: Metal casing suitable for DIN rail mounting

You can refer to the user manual for more information.

The ED-IPC3600 series does not come with a built-in power supply; the system automatically starts upon device connection. Depending on the preconfiguration, it may feature either Pi OS Desktop or Pi OS Lite.
