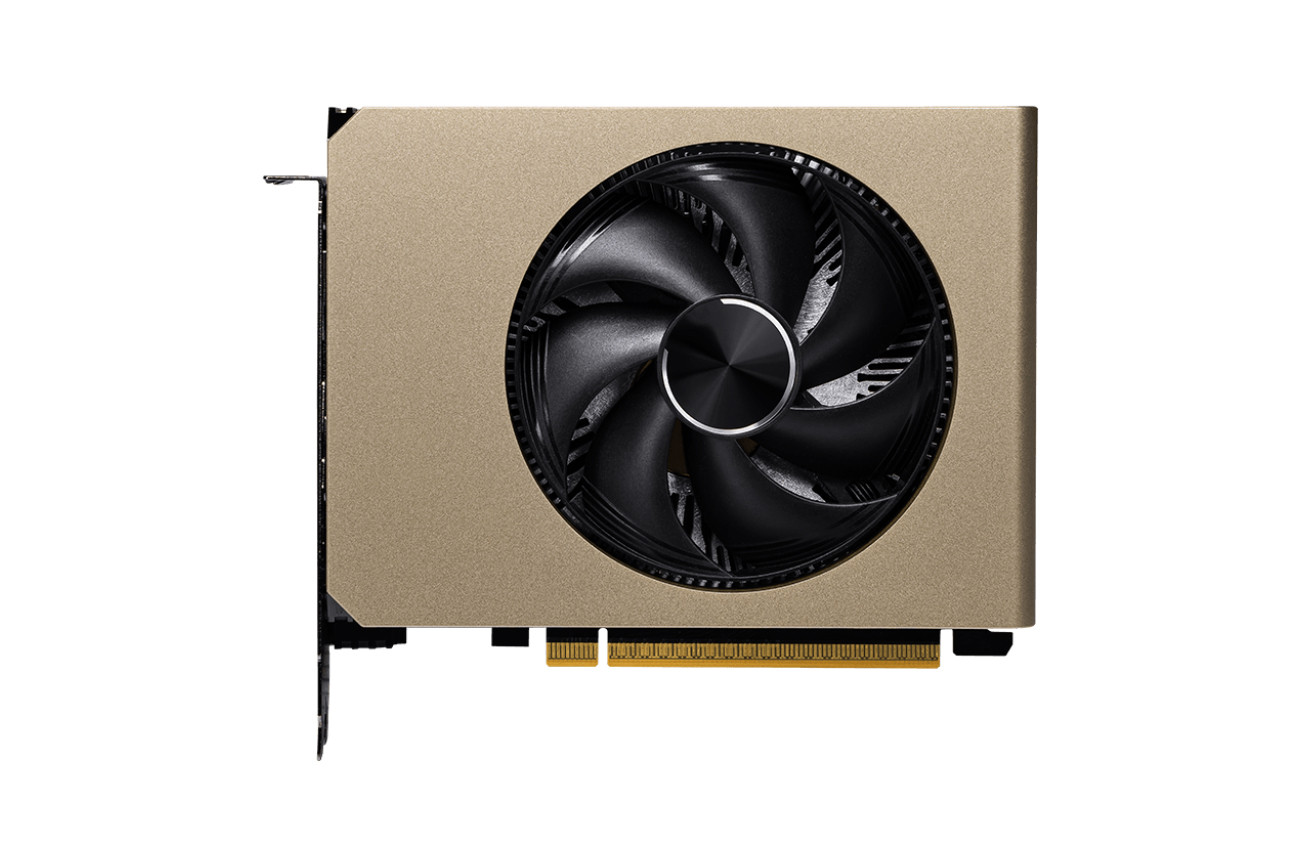

MSI Unveils GeForce RTX 5060 8GB INSPIRE ITX: A Compact Powerhouse for Small Builds

MSI has unveiled its new compact graphics card, the **GeForce RTX 5060 8G INSPIRE ITX**, designed specifically for small-form-factor builds. Despite its modest size, this model promises to deliver high performance and… supposedly an efficient cooling solution (this, of course, needs to be validated through real-world testing rather than just claims). As is typical, the pricing and availability of this new product have not been disclosed.

The GeForce RTX 5060 8G INSPIRE ITX measures 145 × 120 × 45 mm and weighs 581 grams. It comes equipped with 8 GB of GDDR7 video memory that operates at speeds of up to 2512 MHz (and 2497 MHz in boost mode) with a bandwidth of 28 Gbps through a 128-bit interface. The graphics capabilities are powered by 3840 CUDA cores, making it suitable for both gaming and data processing tasks, especially when paired with its high clock frequency.

This graphics card features a dual-slot design. It employs MSI’s proprietary STORMFORCE FAN cooling system, which has seven curved blades designed to maximize airflow while maintaining what the manufacturer claims is a low noise level (however, specific noise level metrics are not provided in the specifications).

In addition to active cooling, the card features a radiator system with a copper core and sunflower-shaped aluminum fins to enhance heat dissipation. The backside includes a ventilation grill with wide slots to facilitate unobstructed airflow.

Noise and temperature assessments require independent testing

As previously mentioned, the official specifications currently leave out several important details: for instance, the noise levels experienced by users during idle or under load with such compact graphics cards. The MSI Gaming OC version with triple fans is likely to be considerably quieter. Additionally, it will probably spin up less frequently and less aggressively, as the GPU would heat up more slowly and to a lesser extent.

The power consumption of the graphics card is rated at 145 watts. Power is supplied via a single 8-pin connector, and a power supply of 550 watts is recommended. Regarding the other interfaces: on the rear side, there are three DisplayPort 2.1b outputs and one HDMI 2.1b port. The latter supports connections to monitors with resolutions up to 4K at 480 Hz or 8K at 120 Hz using DSC (Display Stream Compression).

Additional Features

Users can toggle between GAMING and SILENT modes within the MSI Center software and can also overclock using MSI Afterburner. This allows for performance and noise level adjustments based on current workloads.

The MSI GeForce RTX 5060 8G INSPIRE ITX is an intriguing option for those seeking a powerful graphics card in a compact form factor. It’s designed for small-case builds while delivering respectable performance and effective cooling, making it an enticing choice for gamers and enthusiasts aiming to build compact yet capable systems.

However, some users reasonably point out that the card’s color scheme may not complement every build. Moreover, until the first tests are conducted, it remains unclear what the noise characteristics of this model are, not only in idle mode but also during automatic overclocking or manual frequency adjustments.
